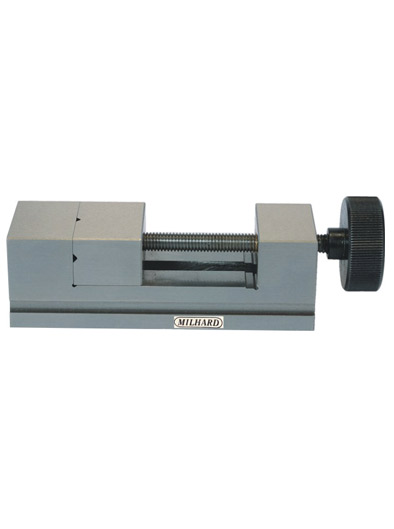

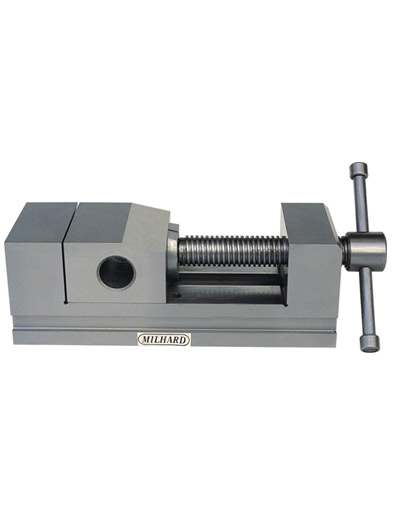

Precision Machine Vice - Series - PMH

Comparator Stands - C-1
Comparator Stands - C-1
Series - PMH
  • Made from tool steel
  • Hardened & ground
  • The moving jaw of vices is slightly narrower than the base to enable the vice to be used on its sides
  • The moving jaw is guided through a precise lead screw

Model
Jaw
Width
(mm)
Jaw
Depth
(mm)
Max
Opening
(mm)
Overall
Length
(mm)
Overall Height
(mm)
Right Angle
Accuracy
(mm)
Net
Weight
(Kgs.)
PMH-1
75
45
75
200
75
0.010
5.25
PMH-2
60
30
60
170
70
0.010
3.80
PMH-3
45
25
45
140
45
0.010
1.60
PMH-4
30
15
30
90
30
0.005
0.50
PMH-5
98
45
100
230
75
0.010
8.00
PMH-6
20
12
20
70
22
0.005
0.17
PMH-7
150
65
150
330
125
0.010
24.60
